Authorizations
The project was authorized by the River and Harbor Act of 1945.
Progress
Construction of the project began in June 1961, and it became operational in 1969. The entire project is considered complete. Construction of the additional generating units started in 1975, and was completed in 1981.
Project
The project includes Lower Monumental Dam, powerhouse, navigation lock, two fish ladders, a juvenile fish facility (JFF), and appurtenant facilities providing for navigation, hydroelectric generation, recreation, and irrigation.
Lower Monumental Dam
The dam is located at the head of Lake Sacajawea, the reservoir created by Lower Monumental Dam. It is 3,791 feet long, with an effective height of about 100 feet. The dam is a concrete gravity-type dam, with earthfill abutment embankments.
Reservoir
Lake Herbert G. West extends up the Snake River for a distance of 28.1 miles to the tailwater of Little Goose Dam. It has a surface area of 6,590 acres.
Generators
The powerhouse has six 135,000-kilowatt units. Power generated during fiscal year 2015 was more than 1.71billion kilowatt hours.
Navigation Lock
This is a single-lift lock, 86 feet wide by 666 feet long, with a 100-foot vertical lift. More than 2.06 million tons of commodities passed through the navigation lock during 2015. The cargo primarily consisted of grains, petroleum products, fertilizer and wood products.

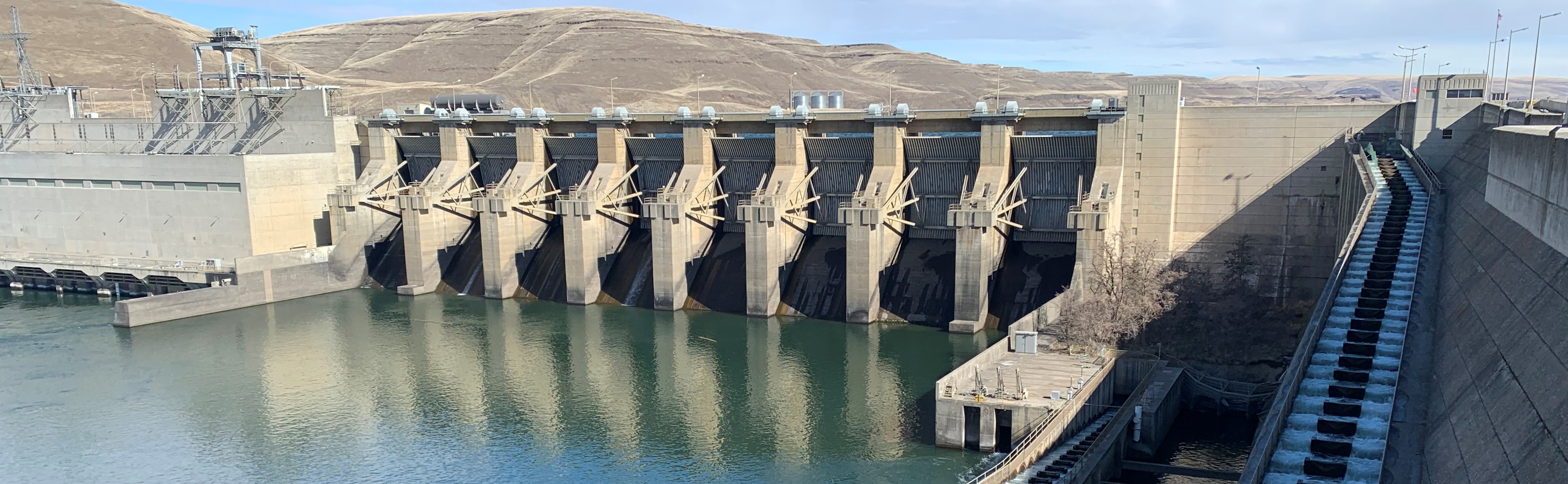

Fish Passage
There are two fish ladders for migrating adult salmon and steelhead to use. Modifications to improve adult Pacific Lamprey passage include installation of passage structures and metal plating to assist lamprey upstream. In 2007, a spillway weir was installed to improve conditions for juvenile fish passage at the dam. During 2015, more than 1,167,619 juvenile salmon and steelhead were collected by the Juvenile Fish Collection and Bypass System. About 98,227 fish were bypassed back into the river, and about 1,067,935 were transported for release below Bonneville Lock and Dam.
Lands
There are 8,335.5 acres of project lands surrounding Lake Herbert G. West. There are 7,024.0 acres of Corps-managed lands that are utilized for public recreation purposes, wildlife habitat, wildlife mitigation, and water connected industrial development. Lake West offers seven day-use areas, five areas offering camping, five boat launch areas, and one designated swimming beach.
Total visitation in 2015 at Lower Monumental’s recreation areas was more than 115,000.
People
About 50 Walla Walla District employees work at the Lower Monumental Project. They serve as electricians, lock operators, mechanics, welders, riggers, painters, utility workers, heavy equipment operators, biologists, park rangers, environmental resource specialists, administrative support staff, maintenance workers and engineers. Together, they manage the safe and continuous operation of the project.
Budget
During fiscal year 2015, total expenditures were about $9.5 million for the Lower Monumental Project.
