Guarding the Treasure Valley: A history of Lucky Peak Dam

WALLA WALLA DISTRICT CORPS OF ENGINEERS
Published Feb. 8, 2023
Lucky Peak Dam became the first dam to be designed and constructed by the new Walla Walla District. Since its construction, Lucky Peak is estimated to have prevented over a billion dollars of flood damage.

Lucky Peak Dam became the first dam to be designed and constructed by the new Walla Walla District. Since its construction, Lucky Peak is estimated to have prevented over a billion dollars of flood damage.

Construction began in 1950 and was completed in 1955. Lucky Peak Dam was built as a rolled earthfill dam, 1,700 feet long at the crest, holding back Lucky Peak Lake.

Construction began in 1950 and was completed in 1955. Lucky Peak Dam was built as a rolled earthfill dam, 1,700 feet long at the crest, holding back Lucky Peak Lake.

The Rooster Tail uses two of the dam’s original six gates to release water from the reservoir back to the Boise River. Using a "flip bucket," the spray is aimed high into the air to reduce the water’s scouring, erosive force before it falls back into the stream channel. The last display took place in April of 2017.

The Rooster Tail uses two of the dam’s original six gates to release water from the reservoir back to the Boise River. Using a "flip bucket," the spray is aimed high into the air to reduce the water’s scouring, erosive force before it falls back into the stream channel. The last display took place in April of 2017.

During the 2017 flood fight, the Walla Walla District provided about 550,000 sandbags to Idaho communities and constructed a 4-foot-tall temporary emergency levee to stabilize 4,300 feet of riverbank, protecting homes and critical infrastructure.

During the 2017 flood fight, the Walla Walla District provided about 550,000 sandbags to Idaho communities and constructed a 4-foot-tall temporary emergency levee to stabilize 4,300 feet of riverbank, protecting homes and critical infrastructure.

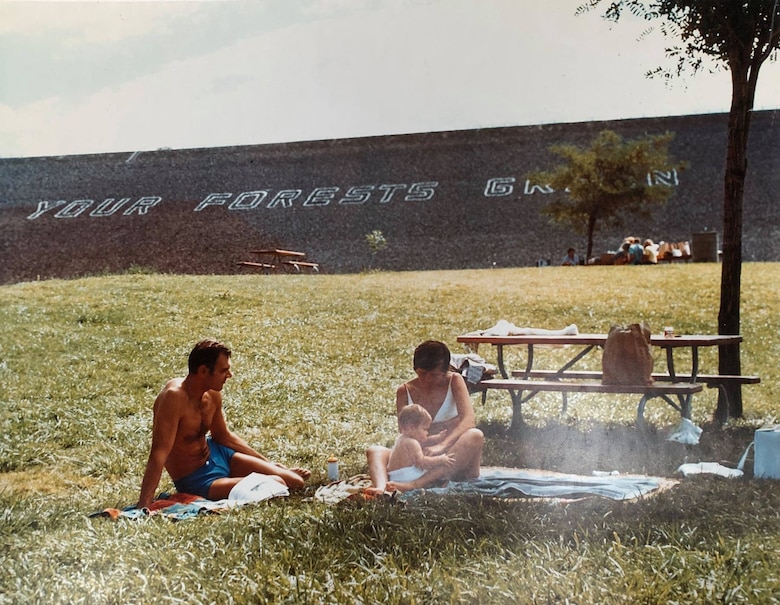

The KEEP YOUR FORESTS GREEN text on Lucky Peak Dam was an extension of the KEEP IDAHO GREEN campaign of the 1950s. The message on the dam was rephrased because Lucky Peak Dam serves the Nation - not just Idaho.

The KEEP YOUR FORESTS GREEN text on Lucky Peak Dam was an extension of the KEEP IDAHO GREEN campaign of the 1950s. The message on the dam was rephrased because Lucky Peak Dam serves the Nation - not just Idaho.

Lucky Peak Dam, June 2021

Lucky Peak Dam, June 2021

Every year, snowmelt from the surrounding mountains flows into creeks and streams that join the Boise River. When flows reach 7,000 cubic feet per second or higher, the river is considered at flood stage.

Flooding records in the Treasure Valley date back to about 1865, with some floods greatly exceeding the 7,000 cfs mark. The flood of 1896 was measured at 35,500 cfs. The 1943 flood reached 25,000 cfs.

For a long time, the growing community and state capitol of Boise, Idaho had to contend with the sometimes-violent nature of the Boise River, in a cycle of building and rebuilding. Arrowrock Dam, belonging to the US Bureau of Reclamation, remained the only storage dam in the basin until the 1950s. The dam was designed as an irrigation project, constructed on the Boise River in 1915 and raised 5 feet in 1937.

But it was not enough, and something needed to be done for flood control.

In 1946, Lucky Peak Dam was authorized under the Flood Control Act. Lucky Peak was named after a successful gold mining camp about three miles north of the planned project footprint, just downstream of Arrowrock. Around the same time, USBR began construction on Anderson Ranch Dam, 42 miles upstream of Arrowrock Dam. This system of three dams would provide flood control and irrigation for the Treasure Valley.



Something new

While Lucky Peak was still in the design phase, the U.S. Army Corps of Engineers began making organizational changes.

Up until now, the Treasure Valley had been under the jurisdiction of the USACE Portland District. However, the authorization of Lucky Peak in 1946, and the authorization of five dams just the year before, led USACE to survey towns in the Pacific Northwest with the goal of establishing a new district. Boise was one of the towns surveyed, along with Pendleton, Tri-Cities, Spokane, and Walla Walla. Ultimately, the City of Walla Walla was chosen, and the Walla Walla District was established on Nov. 1, 1948.



Growing up together

When the Walla Walla District was established, the Lucky Peak Project was still being designed. Several advance engineering studies had been funded for fiscal year 1948, however Portland District was just sketching out the details when they passed Lucky Peak to the new district.

Portland District passed several other projects to the new district, including Mill Creek Dam, which had recently been completed, and McNary Lock and Dam, which was in the middle of construction. Lucky Peak Dam became the first dam designed and constructed by the new Walla Walla District.

Construction began in 1950 and was completed in 1955. Lucky Peak Dam was built as a rolled earthfill dam, 1,700 feet long at the crest, holding back Lucky Peak Lake.

Lucky Peak Lake is 12 miles long, with a storage capacity of 264,400 acre-feet of water. During flood seasons, this capacity is used to retain excess flows of the Boise River. In dry seasons, the water of the reservoir is released to maintain the river for local farmers and irrigators.

And Lucky Peak is not working alone. Anderson Ranch Dam was completed in 1950, becoming the second USBR dam on the Boise River. USACE and USBR can now coordinate the operations of these three storage dams, making effective use of a combined 1 million acre-feet of water storage capacity.

However, water supply is not the only consideration. Lucky Peak Lake bisects the Idaho Department of Fish and Game’s Boise River Wildlife Management Area, a major winter range in the state for deer and elk. Development of the Lucky Peak Project required addressing the impacts to wildlife as well as addressing the needs of the Boise community surrounding the project.

The City of Boise intertwines urban and outdoor life. The people of the region enjoy fishing, hunting and general outdoor recreation. Yet, when the construction of Lucky Peak was authorized, no commitments were made to develop recreation on Lucky Peak Project lands.

When the project was completed, a boat launch ramp was built at the dam, with a play area and beach developed halfway up the reservoir. It soon became apparent that these facilities would not satisfy the recreation needs of the community. And Boise was still growing.

Today, there are 4,079 acres of USACE-managed lands used for recreation, wildlife habitat and operations purposes around Lucky Peak. USACE provides seven park areas, four boat launch ramps, and 80 dispersed recreation sites accessible only by boat. IDFG manages Lucky Peak’s non-park lands under license to maintain the wildlife habitat for deer and elk.

There are also three Lucky Peak State Park units: Discovery Park, Sandy Point, and Spring Shores Marina. These are operated by the Idaho Department of Parks and Recreation, on the shores of Lucky Peak Lake. Ada County Parks and Waterways provides courtesy dock strings under license at USACE boat ramps and remote boat-in sites.

These recreation opportunities have developed along with the City of Boise. Currently, the Lucky Peak Project sees an average of nearly 1 million visits every year.



A show of power

Lucky Peak Dam was dedicated on June 23, 1955. During the dedication, the operation of the project was illustrated by opening the outlet gates and creating the first “Rooster Tail” display at Lucky Peak.

The Rooster Tail uses two of the dam’s original six gates to release water from the reservoir back to the Boise River. Using a "flip bucket," the spray is aimed high into the air to reduce the water’s scouring, erosive force before it falls back into the stream channel.

When Lucky Peak Dam was built, Rooster Tail displays occurred regularly because the outlet gates made up the only release structure of the dam. However, the power of the Rooster Tail display began to raise questions:

Was this powerful supply of water being wasted? Could it be harnessed to provide additional benefits for the region, say in the form of electricity?

At the time of Lucky Peak’s construction, adding hydropower generators to the project was not economically feasible. Then, in the 1970s, a nationwide push to develop hydropower led the Walla Walla District to perform a study allowing for construction of a power plant at Lucky Peak.

After much debate, the Federal Energy Regulatory Commission awarded a license to the Boise Project Board of Control to undertake the project. Work began in 1984 to construct the power plant and reroute water releases through three new hydropower turbines. The powerhouse, owned and operated by four irrigation districts within the Boise Project Board of Control, began generating power in October 1988.

As part of the several-year effort, a separate release structure had to be constructed to manage water releases while the original facilities were modified to accommodate the new powerplant. The new release structure, in conjunction with the powerhouse, now handles the majority of water being released from Lucky Peak Lake. The Rooster Tail, once a common sight, now only happens as an occasional public event when river flows are great enough to require releases exceeding the capacity of the powerhouse. The last display took place in April of 2017.



When flood waters rise

The beginning of 2017 brought record-breaking amounts of rain and snow. Snow runoff from January to July was the second highest in the region since 1900. In February, the Boise River overflowed its banks, sending emergency managers into a flood fight that lasted more than 100 days.

Walla Walla District hydrologists worked closely with USBR and irrigators to safely manage the Boise River reservoir system during the flood fight. In addition, the district provided about 550,000 sandbags to Idaho communities and constructed a 4-foot-tall temporary emergency levee to stabilize 4,300 feet of riverbank, protecting homes and critical infrastructure.

2017 was a long flood, but not a big flood. Lucky Peak Dam played a role in the flood fight, and efforts taken by USACE and its partners were successful in preventing large-scale flooding in Boise and the surrounding communities.

While they cannot prevent flooding, storage dams like Lucky Peak are designed to absorb excessive flows into their reservoirs, thereby reducing the impact of heavy precipitation. Since its construction, Lucky Peak is estimated to have prevented over a billion dollars of flood damage.



A dedication to safety

Over the years, Lucky Peak Dam has been well maintained and remains in good physical condition. However, while the dam remains essentially unchanged, the City of Boise, just 10 miles downstream, has changed a lot.

When Lucky Peak Dam was completed in 1955, the population of the City of Boise, according to US Census statistics, was somewhere around 30,000. Today, Boise boasts a population of over 235,000. The Boise metropolitan area, which includes Nampa, Caldwell and other towns that have blended into Boise’s borders, has a population upwards of 800,000.

This means that, while the likelihood of dam failure remains low, the consequences of a potential dam failure are much greater than they would’ve been 70 years ago.

The Walla Walla District performs routine inspections and evaluations of all its dams and is dedicated to maintaining public safety. Because of Boise’s population growth, Lucky Peak Dam has a higher priority for funding to examine potential risks and identify risk reduction measures.

Providing public safety through flood control has been a mission of the Walla Walla District since its beginnings 75 years ago. It is a mission that will continue to drive operations at Lucky Peak, and at other projects, into the future.
